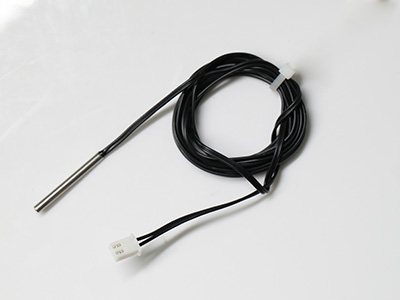

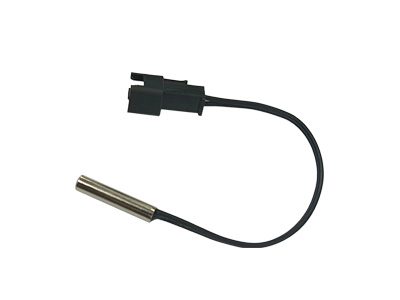

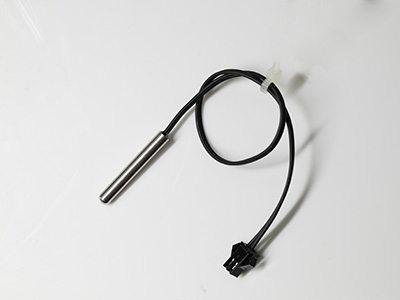

Car refrigerator temperature sensor
Product item: GD502-6-C040
Sensor type: NTC thermistor sensor
Terminal: JWPF-AT, JST
Connector: JWPF-2A, JST
Resistance(at 5℃)=5.06K ohms
Tolerance(at 25℃): 1%
We are here If you need any help
The car refrigerator temperature sensor is a device used to measure the temperature inside the car refrigerator. It has the characteristics of high sensitivity and high accuracy. It can be used to monitor the temperature inside the refrigerator to ensure that food and other items are kept within the appropriate temperature range. It also participates in temperature detection and system control. The car refrigerator temperature sensor ensures it works properly and allows it to accurately maintain the set temperature.
| Common Electrical Specifications | |
|---|---|
| R(25) | 5.06K ohms |
| B(5/25) | 3839k |
| Operating temp.Range(°C) | -30~105℃ |
| Response time in liquid | Max 15s |
| Insulation test | DC500V ≥ 100MΩ 2s |
| Voltage withstand test | 1500V AC 2mA 3s |
Washing machine, Dryer, Mini washer, Dishwasher, etc
The car refrigerator temperature sensor is a device used to measure the temperature inside the car refrigerator. It has the characteristics of high sensitivity and high accuracy. It can be used to monitor the temperature inside the refrigerator to ensure that food and other items are kept within the appropriate temperature range. It also participates in the temperature detection and control of systems. The car refrigerator temperature sensor ensures the works properly and allows it to accurately maintain the set temperature.
